THE COACH STRAW COVER
3D Design to Production

COACH requested a 3D production mold for their new, custom-designed silicone straw cover

From wireframe
to render.

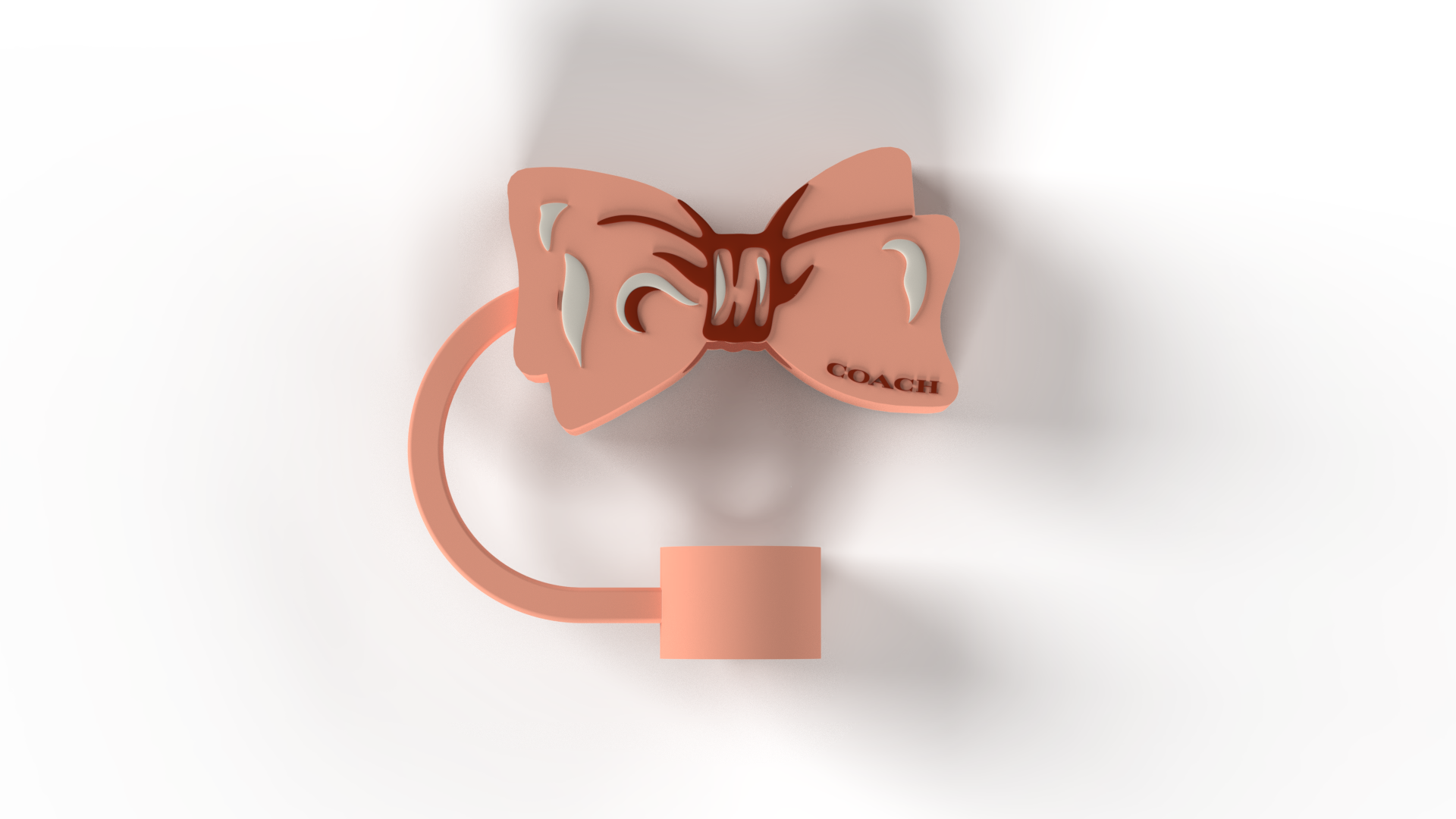

The GIF illustrates the transformation of the Coach straw cover, progressing from a basic illustration to a technical dieline, then advancing through wireframe and shaded stages, and finally a rendered view—all crafted in Rhino8.

THE COACH STRAW COVER
2D to 3D process

The visuals below show the basic illustration I was provided to create the silicone straw cover mold. To accurately create this mold, I measured the straw that it was meant for and created a dieline. Once I got the accurate measurements, I built the structure out in Rhino8.
